Lynx Robotics C-50 Camera Motor

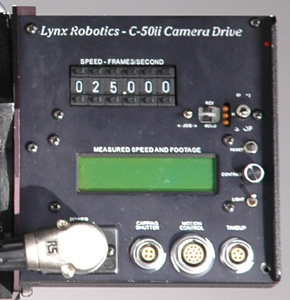

The Lynx Robotics C-50 series controller is a high speed, all crystal, motion control compatible camera motor. Camera speeds are set to .001 frame/sec with a six position digi-switch, so that any possible video or HMI speed is available. Standard maximum speed settings are 128fps forward and 32fps reverse. An inset slide switch selects reverse camera operation, whilst a second slide switch selects enables the motion control inputs and a three position, momentary toggle switch, lets the operator creep the camera's phasing forward or reverse for shooting video monitors. Three LED's show motion control enabled, reverse direction status and home position. The system readout is a 32 character, backlit LCD module, displayiing footage used, film buckle etc.
